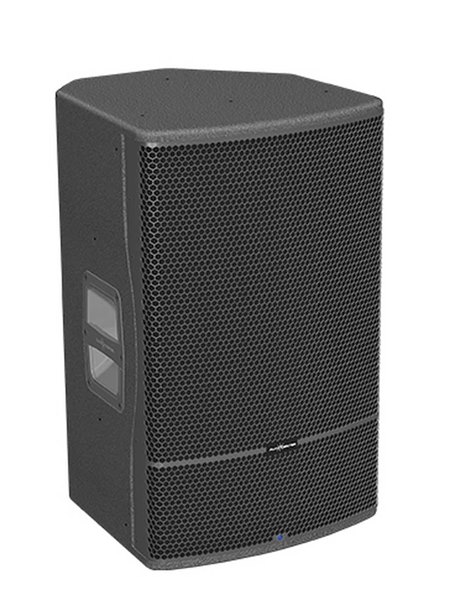

רמקול מוגבר 15" מבית אודיו סנטר סדרה EA5
כוח מקסימאלי ׁׁ(הספק) : 2000W, תגובת תדר (1W 8Ω 2ch) - 20Hz-20KHz(±0.5dB)
הגנות : הגנת זרם ישר, הגנת קצר חשמלי, הגנה מפני התחממות יתר, הגנת עומס יתר, הגנת מתח יתר.
מעבד : 96KHz signal sampling frequency, 24bit precision
מתח עבודה : 100V-130V/60Hz or 220V-240V/50Hz
כניסות לרמקול : 2×NEUTRIK® female XLR, Mono jack 6.35, 1×RCA
יציאות מהרמקול : 2×NEUTRIK® male XLR
מידות : W×H×D 446×700×440mm
משקל : 30Kg
ארגז עץ איכותי CNC
|
Type
|
Active DSP-controlled full range loudspeaker
|
|
Frequency Response(-6dB anechoic chamber)
|
40Hz-20kHz
|
|
Maximum Calculated SPL/1M (Continuous/Peak)
|
130dB/136dB
|
|
LF Driver
|
Customized 15” driver, 3” voice coil
|
|
HF Driver
|
Customized driver, 1.75” voice coil and 1.0”exit
|
|
Horizontal Coverage Angle (Symmetrical)
|
60°
|
|
Vertical Coverage Angle (Symmetrical)
|
40°
|
|
AMPLIFIER
|
|
Amplifier Circuitry
|
Class D
|
|
Power(Peak)
|
2000W
|
|
Frequency Response(1W 8Ω 2ch)
|
20Hz-20kHz(±0.5dB)
|
|
Intermodulation Distortion
|
＜0.05%
|
|
Total Harmonic Distortion
|
＜0.05%
|
|
Protection
|
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
|
|
Cooling System
|
Cooling with fans, air convection
|
|
DSP
|
|
Processor
|
96kHz signal sampling frequency, 24bit precision
|
|
Presets
|
MAIN, F/Monitor, W/SUB
|
|
Crossover
|
Controlled by DSP
|
|
Output/Input
|
|
|
Signal Input
|
2× female XLR, Mono jack 6.35, 1× RCA
|
|
Signal Output
|
2× male XLR
|
|
Power Input
|
3 pin plug
|
|
Working Voltage
|
100V~130V or 220V~240V(±10%,50/60Hz)
|
|
Cabinet
|
|
|
Cabinet Material
|
CNC made of excellent wood
|
|
Cabinet Color
|
Black is the default color. Contact Audiocenter for customization
|
|
Dimension(W×H×D)
|
446×700×440mm
|
|
Net Weight
|
30.0Kg
|
