סוג

רמקול פעיל נשלט על-ידי DSP

תגובת תדר(-10dB)

63 הרץ-20 קילו-הרץ

כיסוי אופקי

120°

Vertical Coverage

Splay angle dependent

Maximum Calculated SPL/1M (Continuous/Peak)

130dB/136dB

HF

Customized driver,1.0” voice coil,1.0” exit

LF

Customized 4X5” driver, 1.0” voice coil

DSP

DSP

Processor

96kHz signal sampling frequency

Presets

ARRAY2,ARRAY4,ARRAY6

AMPLIFIER

AMPLIFIER

Amplifier Circuitry

Class D

Power(RMS standards)

1000W

Peak Power

2000W

Frequency Response(1W 8Ω 2ch)

20Hz-20kHz(±0.5dB)

Intermodulation Distortion (20Hz-20kHz, half power)

＜0.05%

Total Harmonic Distortion (20Hz-20kHz,Rated power 8Ω)

＜0.05%

Cooling System

Cooling with fans, air convection

Protection

DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

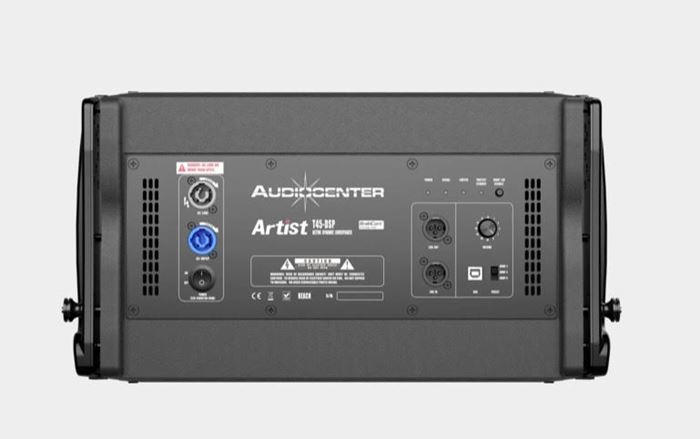

Signal Input Connectors

Female XLR

Signal Output Connectors

Male XLR

Power Input Connectors

Power connector

Power Output Connectors

Power connector

Working Voltage

100V-130V~ or 220V-240V~(±10%,50/60Hz)

Power consumption (1/8 output power)

65W

CABINET

Cabinet

CNC made of excellent wood

Angle Adjustment

0.5°, 1.5°, 3°, 5°, 7°, 10°

Coating

Durable Polyurea Coating

Cabinet Color

Black is the default color. Contact Audiocenter for customization

Grille

Iron mesh

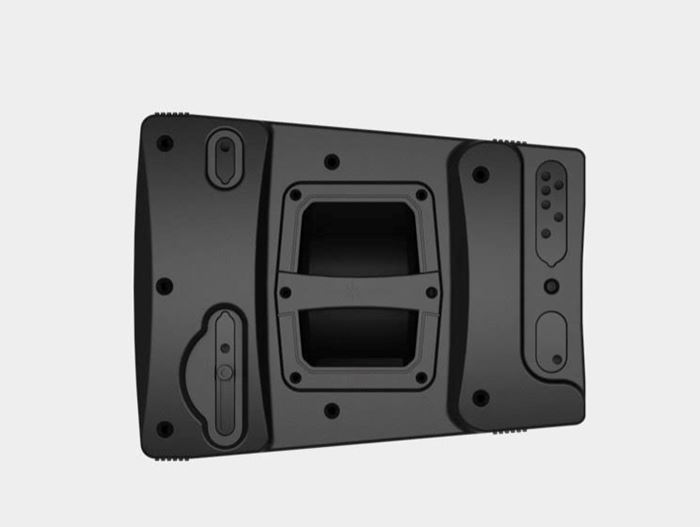

Handles

2 side

Optional Accessories

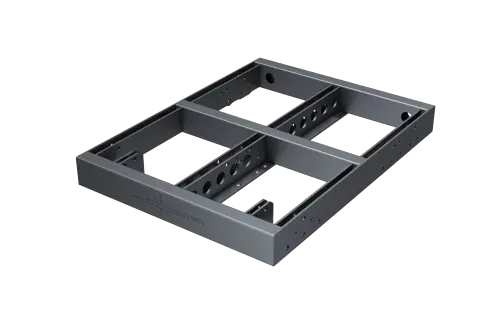

Flightcase with 100mm wheels / Durable rain bag/ Frame for flying and ground stacking

Speaker Dimension(W×H×D)

458×293×381mm

Carton Dimension(W×H×D)

389×553×476mm

Net Weight

18.0kg

Shipping Weight

20.5kg

Technical Support and After-sales Service

Global application support team，EASE GLL files available
