Type

Multipurpose Micro-Line Array Loudspeaker

Power

60W

Frequency Response(-10dB)

100Hz-22kHz

Horizontal Coverage

100°

Vertical Coverage

20°

Maximum Calculated SPL/1M (Continuous/Peak)

111dB/117dB

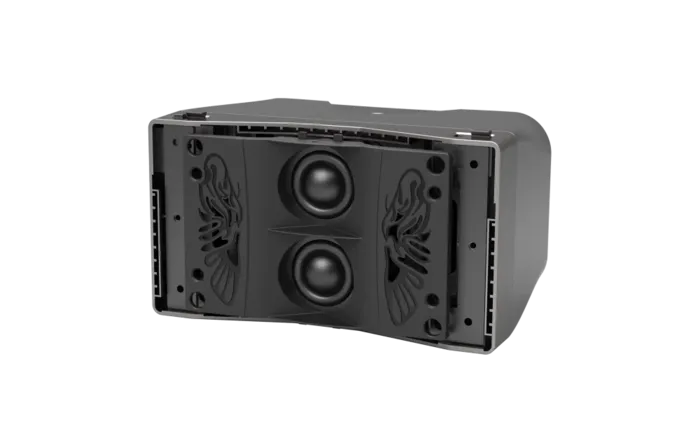

HF Driver

2×1” driver

LF Driver

4” driver,1” voice coil

Impedance

16Ω

Crossover Mode

Passive Crossover

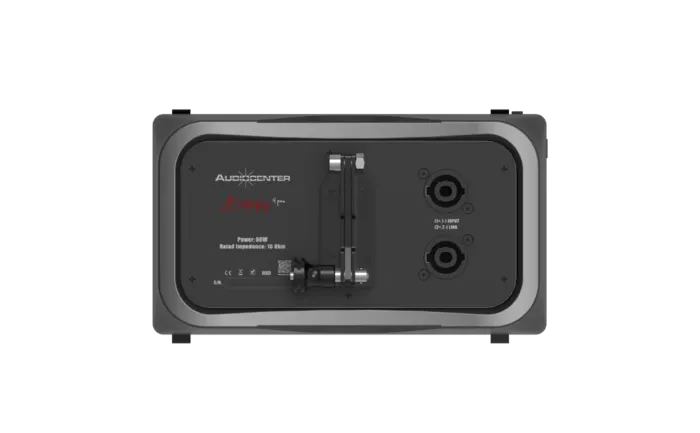

Input Connectors

Speakon 4pin

Cabinet Material

ABS plastic material

Angle adjustment

0°,4°

Cabinet Color

Metal gray

Grille

Aluminium mesh

Mesh Color

Metal gray is standard and default color,

Contact Audiocenter for customization

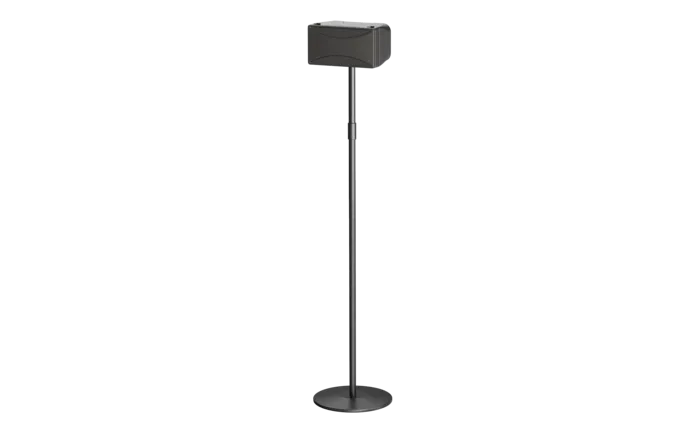

Pole Mount

M10

Optional accessories

Hanging Bracket, Wall Mount Bracket, Support Bracket

Speaker Dimensions(W×H×D)

215×122×165mm

Carton Dimensions(W×H×D)

253×160×247mm

Net Weight

2.3kg

Shipping Weight

2.7kg
