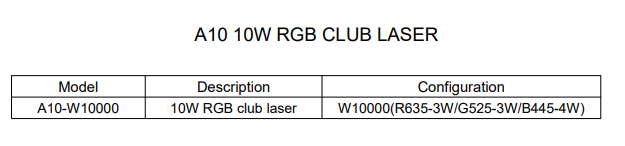

A10-W10000: R635-3W, G525-3W, B445-4W
-Rated Voltage: AC100~240V 50/60Hz; 250W
-Scanner: 40kpps fast scanning system, scan angle: max±30°; Input signal: ±
5V; -Modulation: analog
-Beam diameter and divergence: 3*6.5mm; 1.5mrad
-Control mode: sound, auto, master-slave, DMX512(27/52CH), SD card, ILDA
-Demonstration effect: built-in 160 pattern, SD card unlimited storage. -Control Interface: 3 pin DMX512, 25DB ILDA, EASY ILDA
-DMX effect: double pattern mode, and with the function of unique
blanking, strobe, rotation, movement, zoom, write in, speed and color etc. -Control technology: ①RDM data bidirectional transmission ② SD card online
upgrade ③temperature control system ④DMX512 upgrade
Operating requirement: dry, less dust, 0~35℃(environmental temperature), will

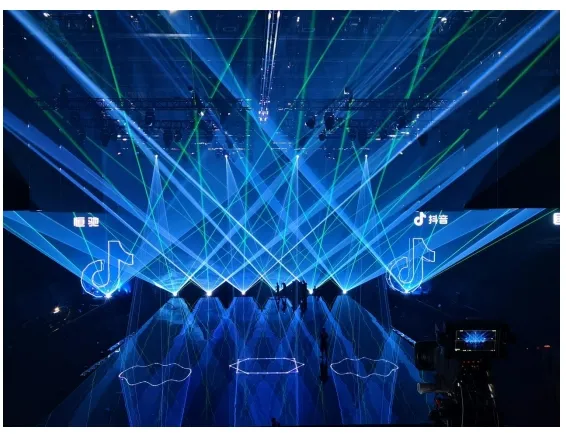

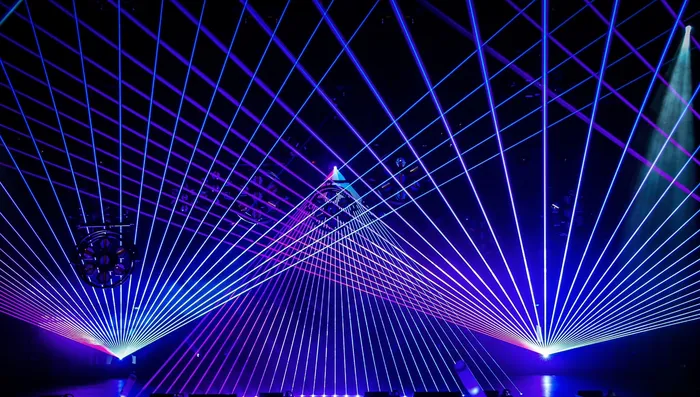

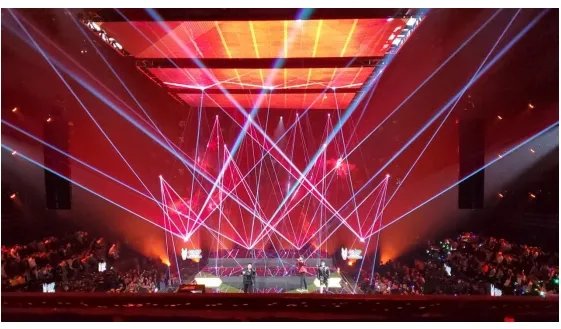

reduce the attenuation of the diode and extend the life of the light. -Application: disco, club, medium indoor venue, theatre, etc. -
