Technical Parameter
Input: Four -channel electronic balance
Impedance:>10 k ohms
Maximum input level:+12dBu
Output: Eight-channel electronic balance
Impedance:<80 ohms
Maximum output level:+18dBu
Frequency response:±0.5dB 20Hz-20KHz
S/N:>100 dBA
THD +N:<0.005%
Intelligent fan accelerates temperature to control the inside of device.
Maximum delay of each input:420.9984ms
Maximum delay of each output:128.9984mS
Input gain:+12dB to-18dB,step interval0.1dB
Output gain:+12dB~-18dB,step 0.1dB
Parametric equalizer: input 30 segments, output 7 segments
High pass (low cut) and low pass (high cut) filters
Frequency range:20Hz~20KHz,1/36 octave
Filter slope:-6dB,-12dB,-18dB,-24dB,-36dB,-48dB.
Type selection: Butterworth, Linkwitz-Riley, Bessel 12dB Variable Q value.
Input Noise gate
Threshold value:-80dBu~-50dBu
Startup time:10ms~1.0sec
Release time:1ms~1.0sec
Input compressor, output limiter
Threshold value:-14dB to 16dB, and the adjustment step is 0.2dB.
Ratio output value: 2:1~32:1, inflection point:0%~100%
Startup time ranges from 0.1 to 3.0sec/ output (5.0sec).
Release time (5ms to 200ms/1ms to 900ms) Input/output channel.

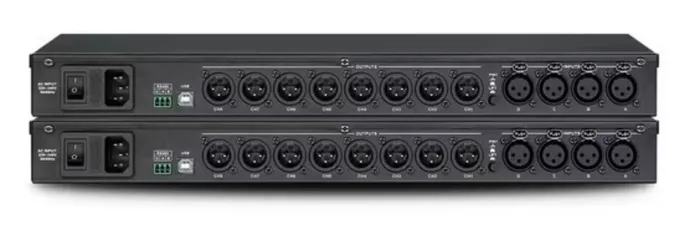

Connector
Input: 3-pin XLR female socket
Output: 3-pin XLR male socket
Communication port:RS485 USB
Power supply:AC220V~240V @50/60Hz
Power consumption:<50 watts
