Model

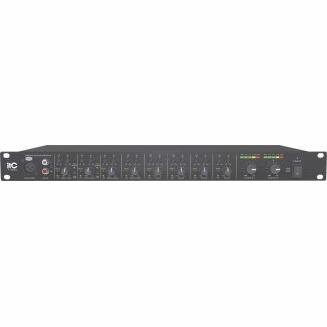

T-4S04

Input Sensitivity/Impedance

1-4MIC/ Line

2.5mV/5KΩ balanced, ±250mV/5KΩ balanced

1-4AUX RCA In

400mV/5KΩ unbalanced

Output Level/Impedance

Master 1, 2,3,4

1V/600Ω balance (MAX:±7.75V)

AUX

1V/10KΩ unbalanced (MAX:7.75V)

Tone

Bass: ±15dB at 100Hz, Treble: ±15dB at 10KHz

Low Cut

200Hz / 12dB per octave slope

Frequency Response

Less Than

S/N Ratio

-1dB(20Hz~20KHz)

MIC

Line

More than 60dB

THD

More than 75dB

MIC

Line

Less than 0.05%

Cross-talk

More than 0.03%

MIC

More than 60dB

Line

More than 75dB

Power Consumption Power

20W

Power Supply

~110V/60Hz or ~230V/50Hz

Dimensions

484x200x44mm

Weight

3.9Kg
